UNIFORM - Implants and abutments from the known to the unknown
Are you also engaged in implantology?
BIONIKA Medline Kft. has been the best assistant for dentists, dental technicians and implantologists for more than 32 years. One or two stage implants? Superstructures? Dental implant instruments? Bone substitutes? Dentures made with CAD / CAM technology? With us, you will find whatever it is you need! We develop our products with passion and determination, as we know that our colleagues and patients in dentistry deserve only the best.
Wide product range, good value for money, long-term warranty and 100% satisfaction! These features await you at BIONIKA.
Compatibility
ADIN® • Alpha Bio® - NeO® - NICE® • ANKYLOS® • Anthogyr® - Anthofit® • ASTRA TECH® - EVOLUTION® • BEGO® - Semados® • BioHorizons® • Biomet 3i® • Bioplant® • BoneLevel® • Brånemark® • Bredent® - blueSKY® • CAMLOG® • CONELOG® • CORTEX® • CortiLog® • DenTi® • Denti Kone® Dentium® • DIO® - SM® - UF® • Dynamic® • Fullplant® • ICX® • Implant Direct® • iSy® • Kontact® • Legacy® • MEGAGEN® • MIS® - C1® - Seven® UNO® • Neodent®• Neoss® • Nobel Biocare® - ACTIVE® - Replace® - CC® • Osstem® • Pitt-Easy® • Sanatmetal® • SGS® - D® • SIC® • Sin Octa® • Straumann® • Tiolox® • TRI-Log® • Uniplant® • WaYland Vital® • XiVE® • Zimmer®

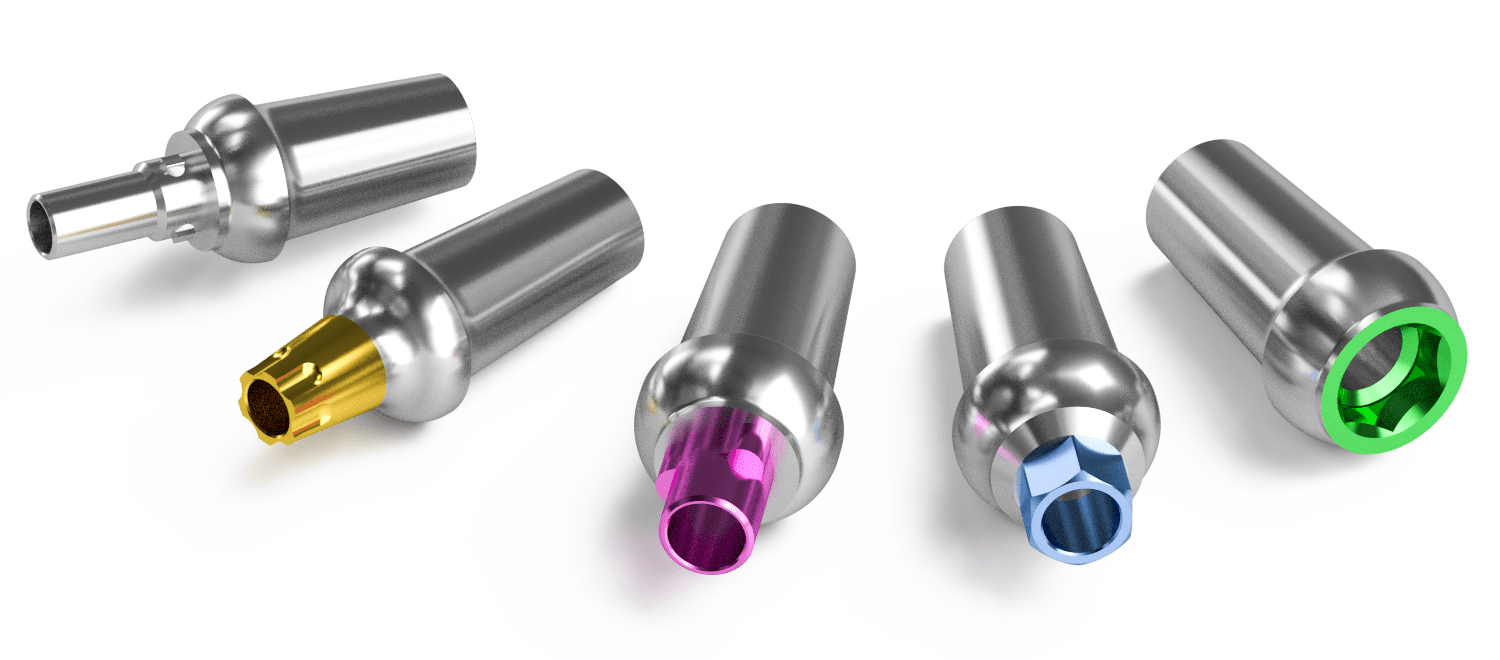

Our COMPATIBLE abutments are designed to fit perfectly with other systems and Instruments. There is a wide selection of abutments available, the interface of which can be selected according to the desired system.

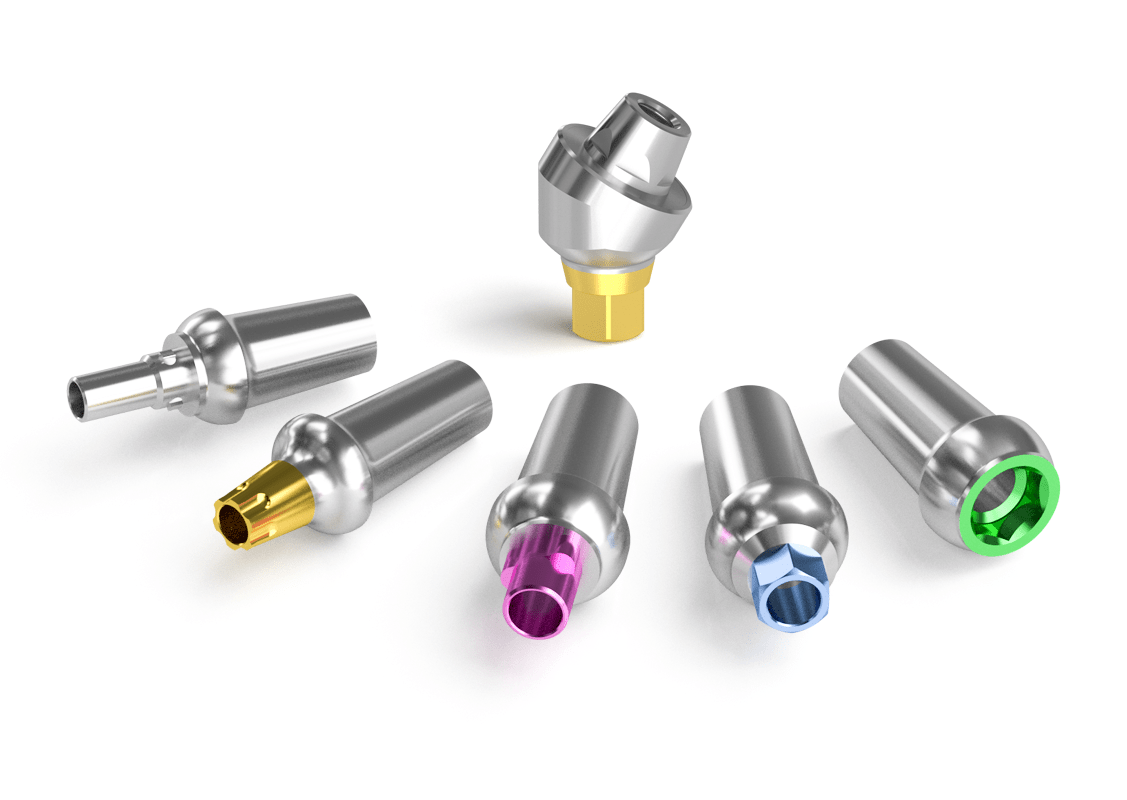

We manufacture a wide selection of abutments of different sizes and diameters. We even offer personalized solutions for extraordinary cases! You can choose from nearly 50 types of geometries for plastic, zirconium, titanium and cobalt chromium-based dentures. We also provide implant heads for removable, screwed and adhesive dentures, as well as implant-level casting heads, temporary heads, gum-forming heads, prosthetic and CAD-CAM elements.
We use alloyed, high strength Grade 5 titanium for the production of our abutments, in accordance with the ISO 5832-4 ASTM F136 standard.
The titanium we use has exceptional biocompatibility, which is why it is almost entirely risk-free. We conform to the harmonized European Union laws when it comes to the design, manufacturing and quality control of our products. BIONIKA Medline Kft. is operated according to the EN ISO 9001 and the EN ISO 13485 quality management systems. Our products bear the CE mark, which is certified by TÜV Rheinland.
For further information, check out our catalogue!
Actival
Compatibility: ADIN® CloseFit® | Callus® | Implant Direct® InterActive® | Nobel® ACTIVE® | Nobel® Parallel® CC
Hexagonal positioning. Micromotion-free conical connection. The fixing screw has a torx key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can also be ordered. Our ACTIVAL system is compatible with the following systems: NOBEL ACTIVE®, NOBEL CC®
BIONIKA AS
Compatibility: Astra®
Hexagonal positioning. Micromotion-free conical connection. The 1,2 mm fixing screw has a hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can also be ordered. There is a wide selection of abutments available, the interface of which can be selected according to the desired system. Our BIONIKA AS system is compatible with the following systems: Astra®

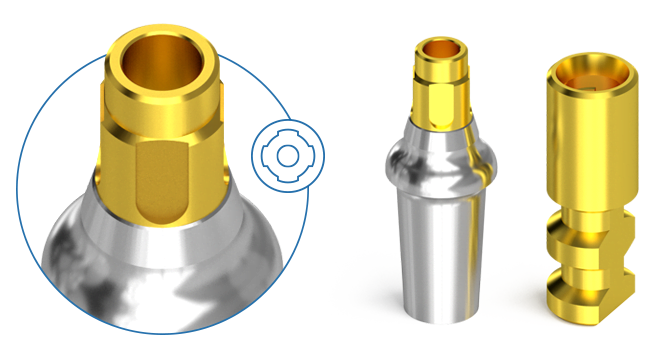

Bonelit
Compatibility: ICX® da Vinci® | Straumann® BoneLevel®
Ribbed in four positions to inhibit rotation. Tube-in-tube and conical micromotion-free fixation. Every implant diameter has a different size. Narrow, conical platform. The locking screw has a torx key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can also be ordered. Our BONELIT system is compatible with the following systems: Straumann - BoneLevel®

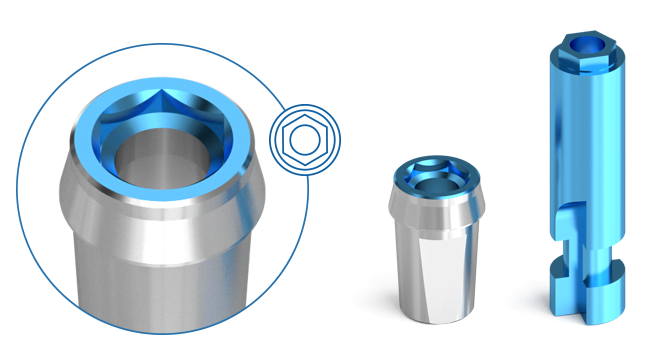

BIONIKA BR
Compatibility: Brånemark®
Outer hexagonal positioning. The 3,75 and 4,0 mm implant diameters have the same head sizes. Flat platform, perpendicular to the axial direction. The fixing screw has a torx key aperture. There is a wide selection of abutments available, the interface of which can be selected according to the desired system. Our BIONIKA BR system is compatible with the following systems: Brånemark®

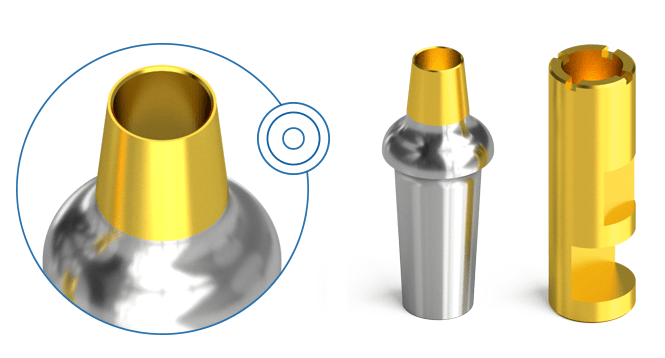

BIONIKA CA
Compatibility: Ankylos®
Self-locking conical connection. The connection remains the same, no matter which implant size is used. Customized solutions can be ordered as well. The locking screw has a 1 mm hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Our BIONIKA CA system is compatible with the following systems: Ankylos C/X®

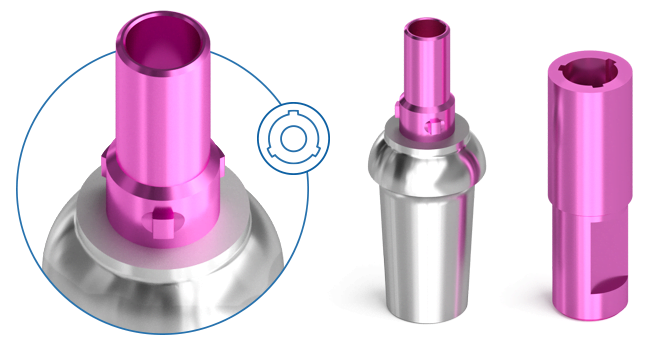

CORTILOG PCL
Compatibility: CamLog®, Corti-Log®
Tube-in-tube connection, positioning with the help of three nails. Every implant diameter has a different size. Flat platform, perpendicular to the axial direction. The locking screw has a 1,27 mm hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can be ordered. Our CORTILOG PCL system is compatible with the following systems: CAMLOG®, TRI-Log®, CortiLog.

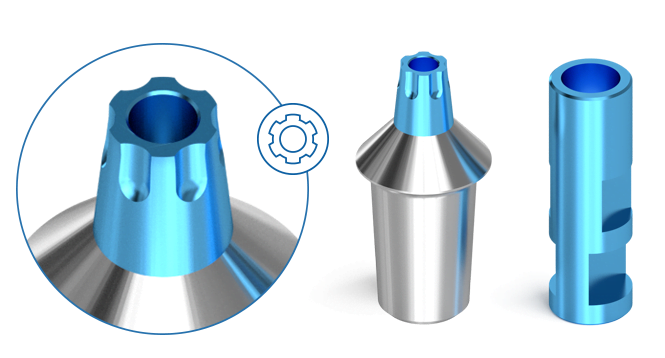

BIONIKA cX
Compatibility: Ankylos®
Self-locking conical connection. The connection remains the same, no matter which implant size is used. Customized solutions can be ordered as well. The locking screw has a 1 mm hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Our BIONIKA CX system is compatible with the following systems: Ankylos C/X®

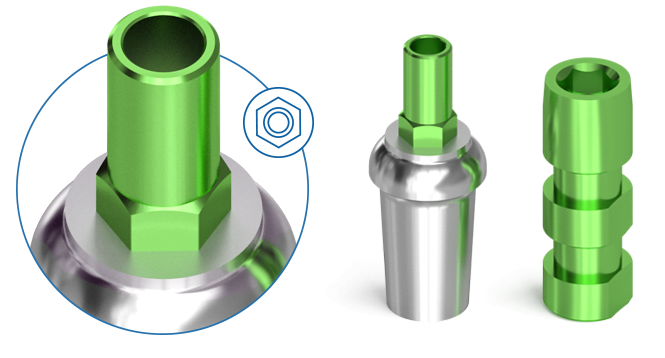

BIOSS
Compatibility: DenTi® Root Form®
Tube-in-tube connection, hexagonal positioning. Flat platform, perpendicular to the axial direction. The locking screw has a 1,2 mm hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can be ordered. Our BIOSS system is compatible with the following systems: DenTi®

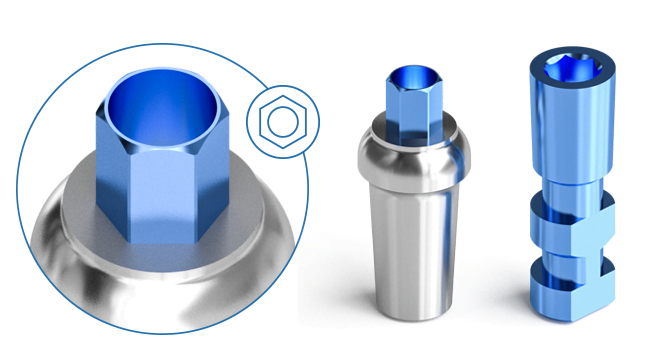

BIOPLANT
Compatibility: Amelo® |OT Medical® | Pitt-Easy® | Symplant®
Connection using hexagonal positioning. For the sizes of 3,25 and 3,75, the diameter is the same, while in the case of smaller 4,10-4,90-6,50 sizes, a large-spaced hexagon is to be used. Flat platform, perpendicular to the axial direction. The locking screw has a 1,67 mm key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can be ordered as well. Our BIOPLANT system is compatible with the following systems: Pitt-Easy®, Bioplant

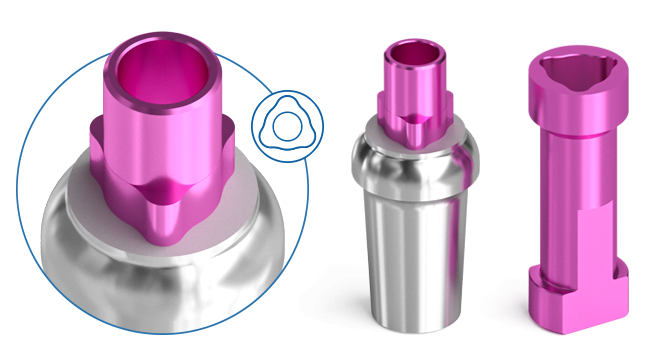

BIONIKA RP
Compatibility: Nobel® Replace Select®
Tube-in-tube connection with three positioning ribs. Every implant diameter has a different size. Flat platform, perpendicular to the axial direction. The locking screw has a torx key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can be ordered as well. Our BIONIKA RP system is compatible with the following systems: Nobel Replace®

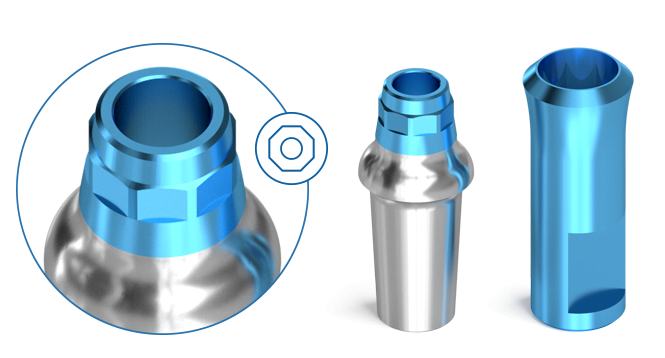

BIONIKA ST
Compatibility: Straumann® sinOcta®
Connection using octagonal positioning. Self-closing, conical fixation. Wide platform with a 90 degree cone angle. The locking screw has a torx key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Customized solutions can be ordered as well. Our BIONIKA ST system is compatible with the following systems: Straumann® synOcta®

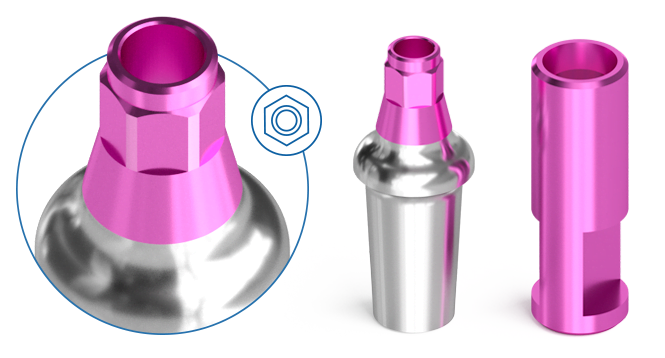

HICON
Compatibility: ICX Templant®
Hexagonal positioning, Micromotion-free conical (90 degree) connection. The locking screw has a 1,2 mm hexagonal key aperture. The design of the implant head is not the same in all cases, but it is compatible with the original design. Our HICON system is compatible with the following systems: ICX Templant®
